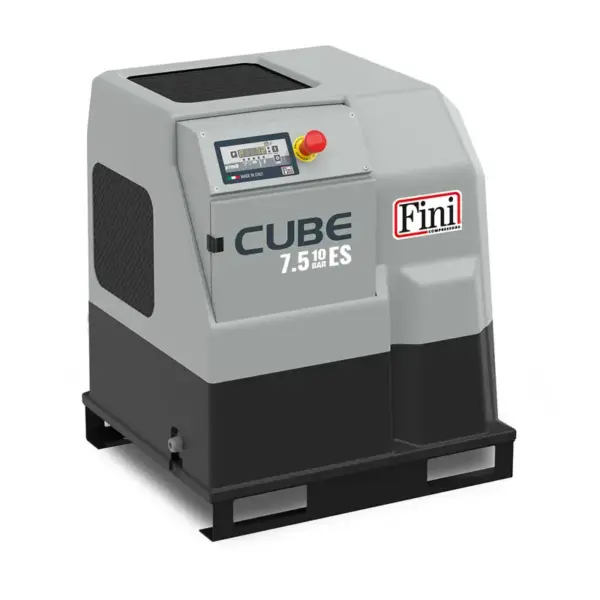

FINI CUBE ROTARY SCREW AIR COMPRESSOR – 7.5KW WITH DRYER
24 people are viewing this right now
Product successfully added to the Quote List
Guaranteed safe & secure checkout
Description
Additional information
Reviews (0)
Questions
Description
Coaxial rotary screw compressors without gears: all the power of the electric motor is transferred to the screw unit featuring top efficiency levels and operating reliability. The small size of the air-end/motor connection system allows for an extremely compact design for the compressor. It also means that the air dryer (optional) can be fitted inside the machine without affecting its overall dimensions. Noise levels ranging from 63 to 68 dB(A).
Additional information
| Dimensions | 650 × 580 × 750 cm |
|---|---|
| kW | 7.5 |
| Hp | 10 |
| L/min | 1050 |
| m3/h | 1.05 |
| c.f.m | 37.1 |
| Bar | 10 |
| PSI | 145 |
| N Stages | 1 |
| Country Of Origin | Italy |
| V/Ph/Hz | 400/3/50 |
| Receiver | N/A |
| dB(A) | 67 |
| BSP | 1/2" |
| Air End / PUMP | FS26 |
| Drive Type | DIRECT DRIVE FIXED SPEED |
| Product Type | FLOOR MOUNTED & DRYER |
| Amps | N/A |
| SKU | FI-V51PO92FNM743 |
| Model | CUBE 7.5-10 ES |
| Oil Capacity | 8 |
| Weight (KG) | 133 |
